NFL Series
Ultra-Clear Adhesive Transparent LED Film
Just stick, it turns glass into eye-catcher

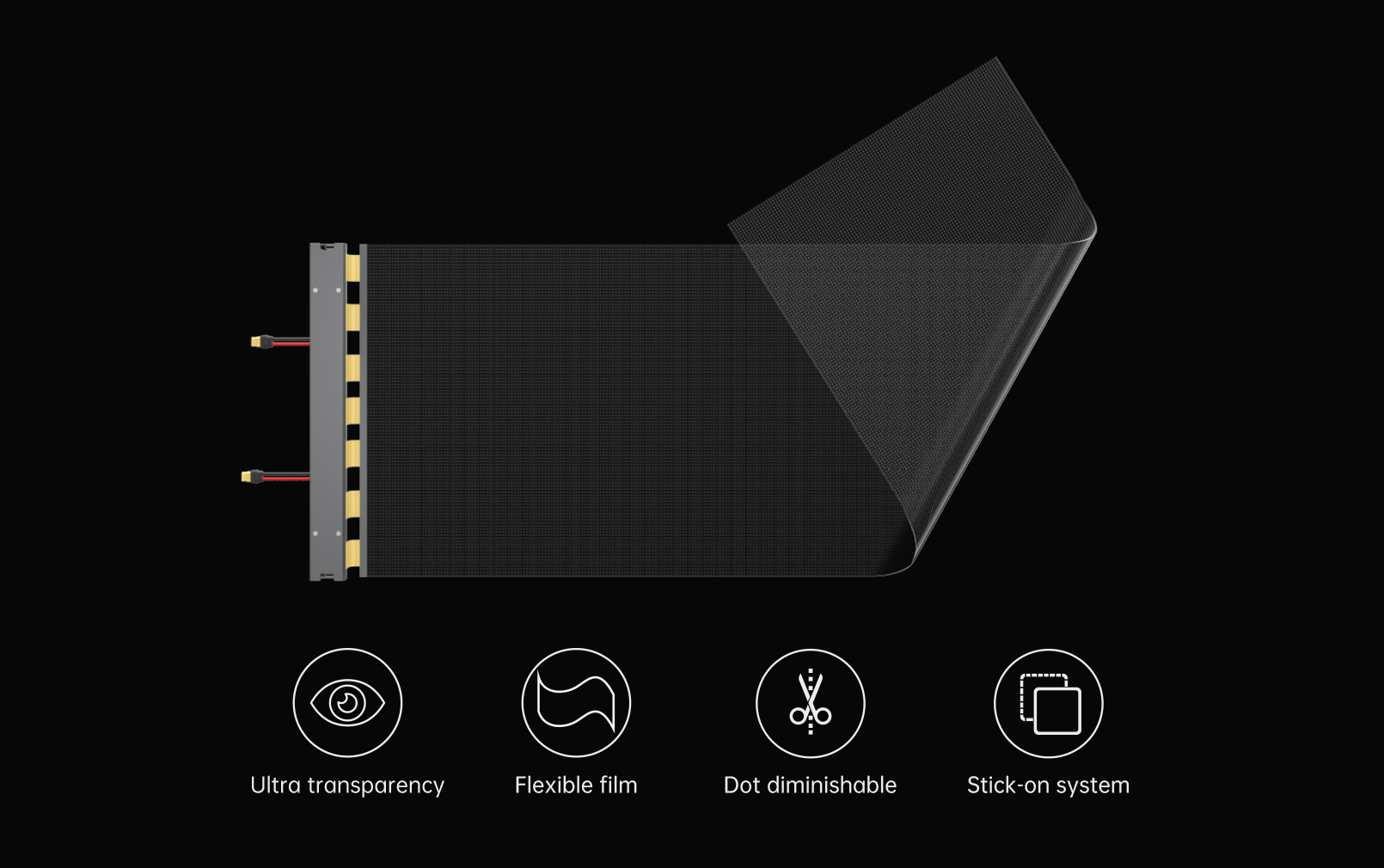

NEXNOVO's new-generation ultra-clear adhesive LED film solution, NexFilm (NFL Series), is developed with IC-integrated LEDs, highly conductive nano-circuit technology, and ultra-transparent resin as base material. With pixel pitch as fine as 3.9mm, the dark conductive circuit and black-coated LEDs help reduce ambient light interference while enhancing image contrast and color consistency.

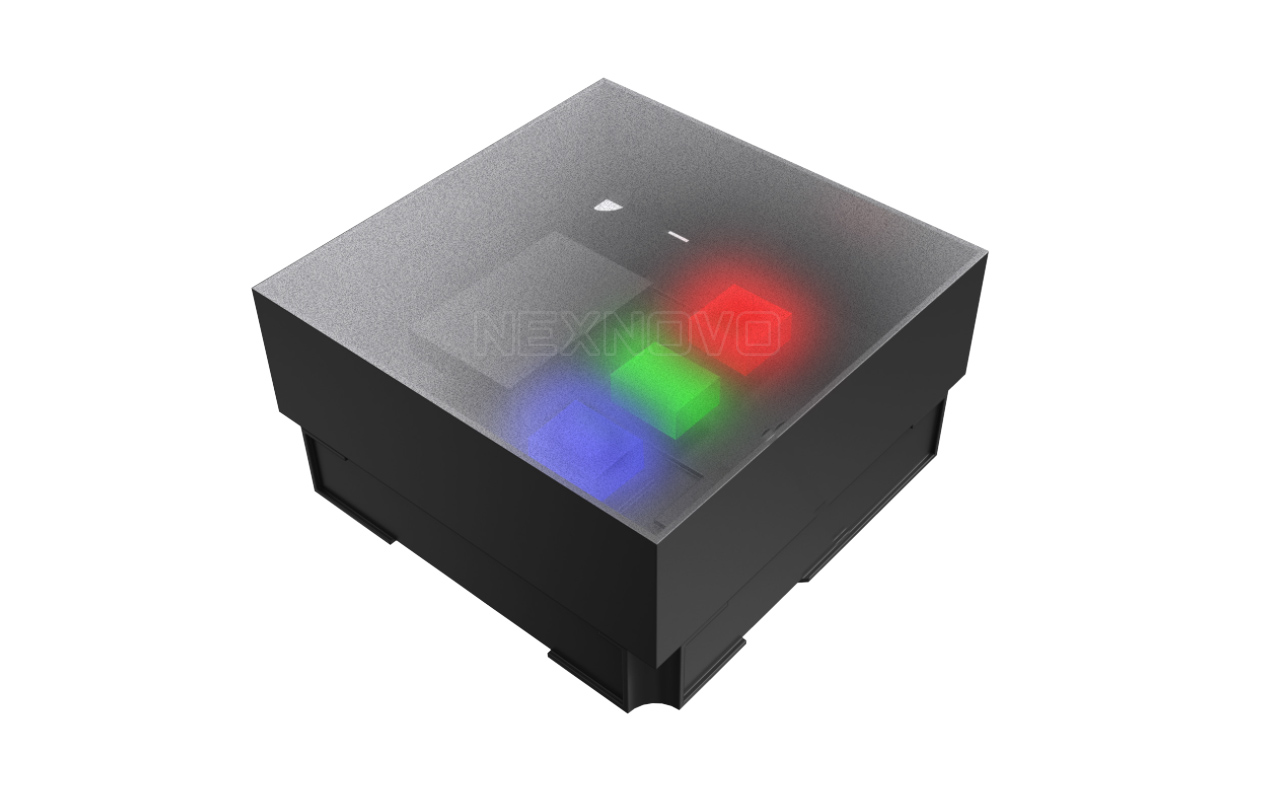

Black-encapsulated LED gathers light with less light leakage and increases the color contrast of image.

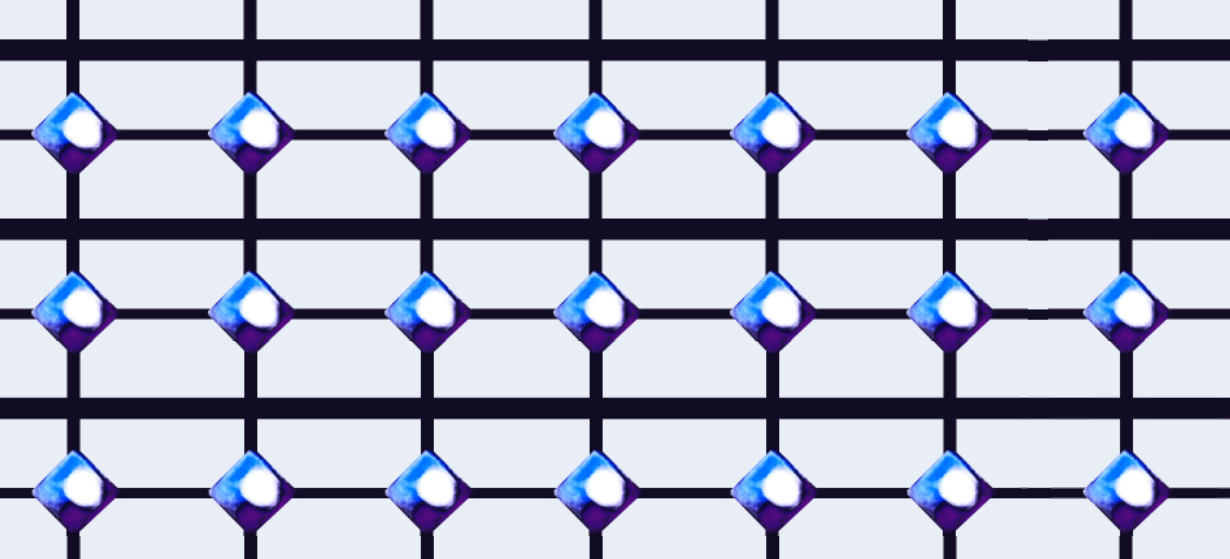

Extra thick conductive circuit offers strong conductivity and less voltage drop. Also dark coated circuit reduces the ambient light reflection which contributes to higher image contrast.

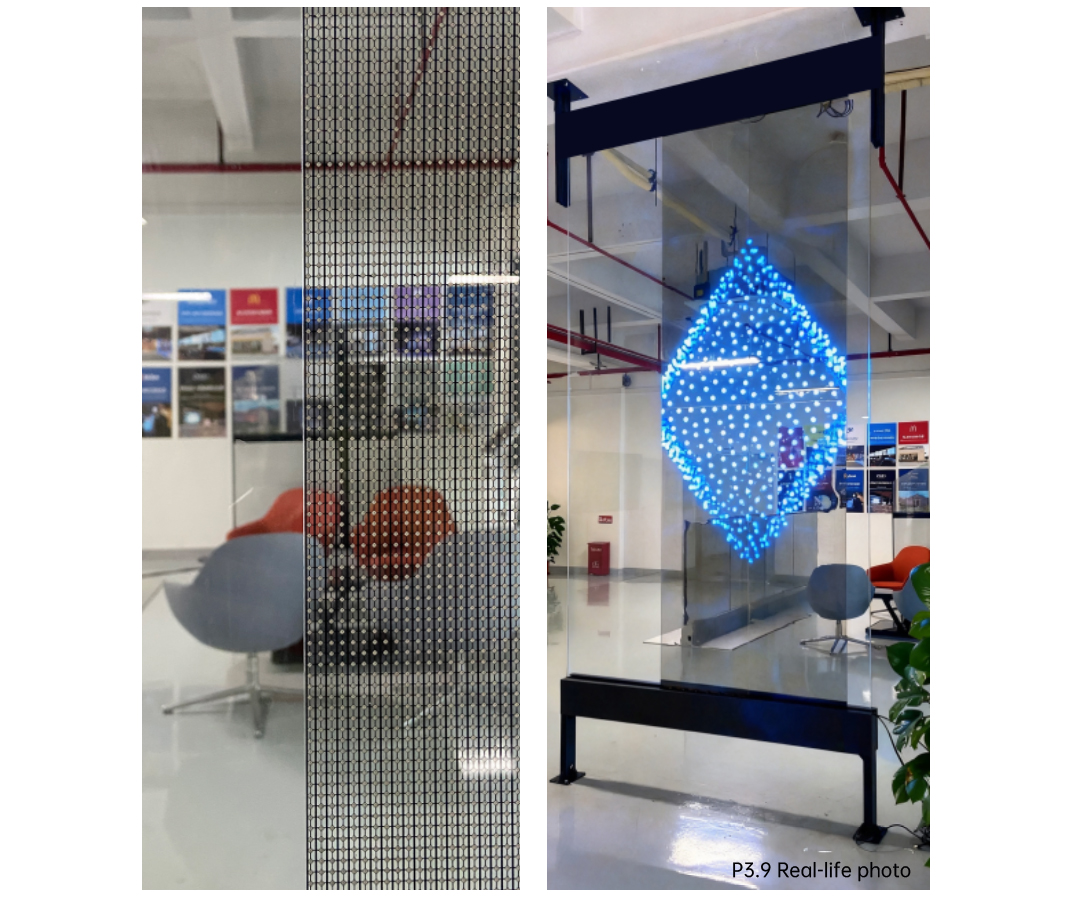

Pixel pitches from 3.9mm to 5.9mm meet the commercial advertisement needs and also present atmospheric videos in the retail sector.

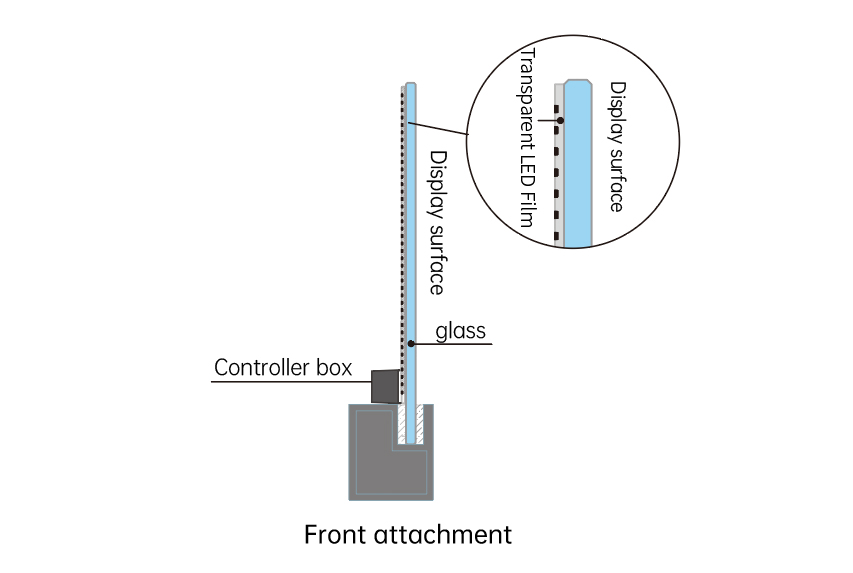

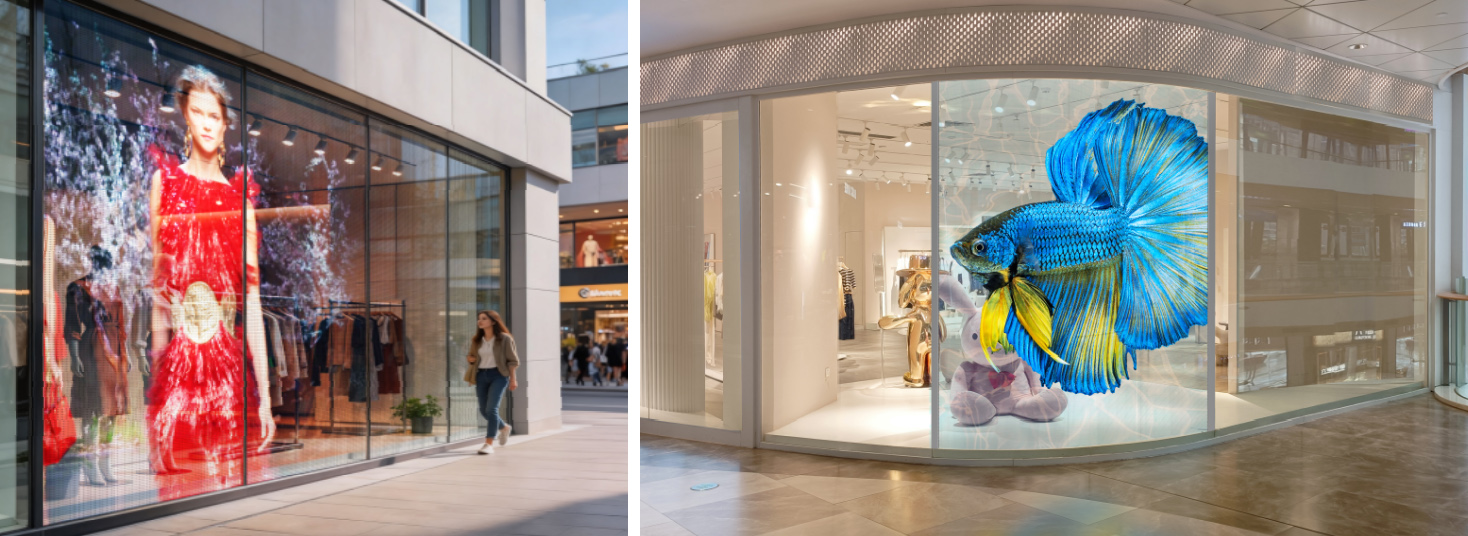

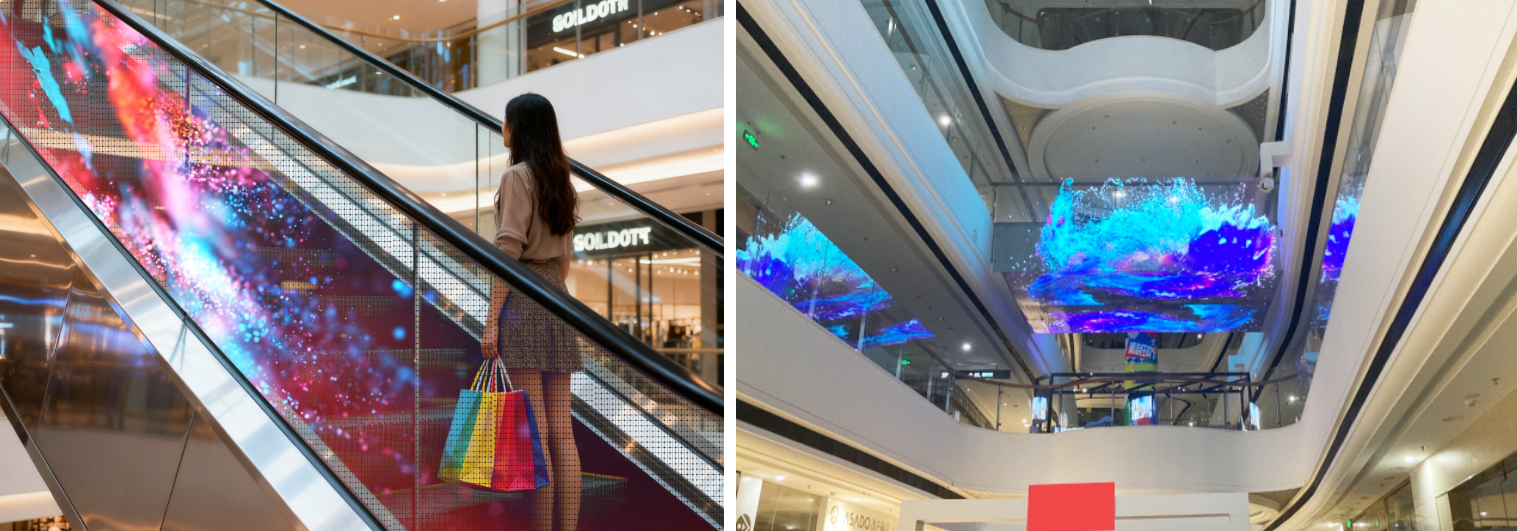

Front bonding way matches a variety of application scenarios such as storefront, indoor elevator and balustrades etc.

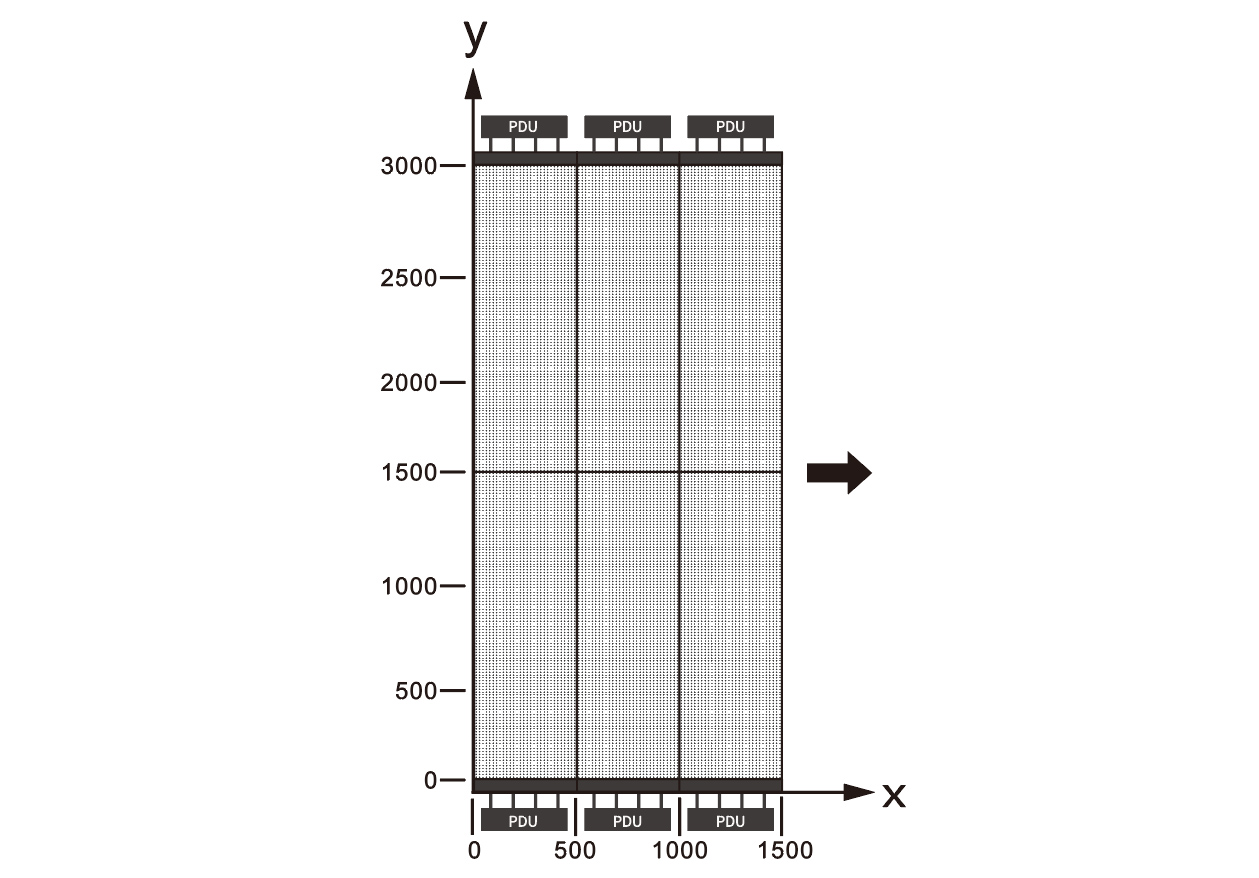

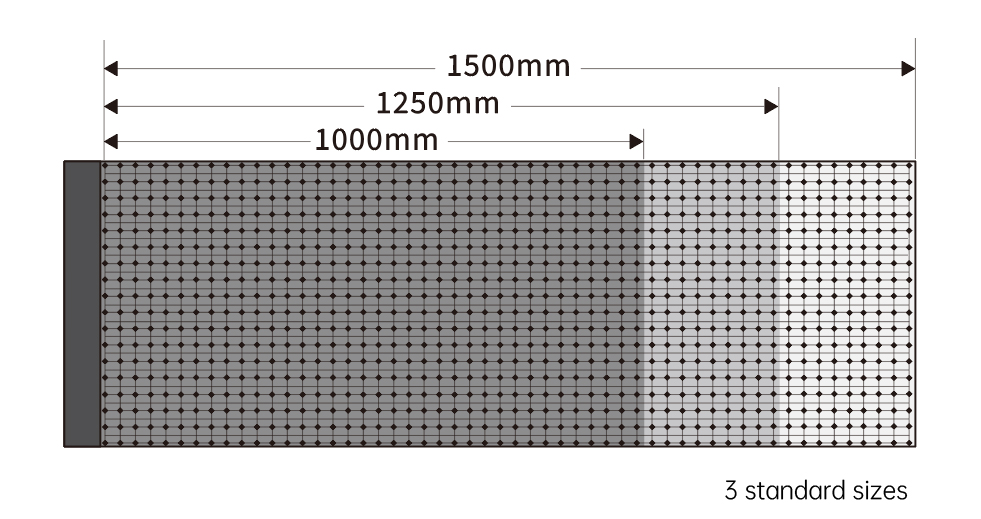

The maximum module is 500mmx1500mm and A module joins B module in the opposite reaching up to 3000mm in Y axis with no size limitation in X axis.
NFL screen uses non-yellowing resin film featuring high flexibility and up to 78% physical transparency without disrupting indoor natural lighting. NFL5.9 goes up to 78% physical transparency.
It is as thin as 2mm and weighs merely 2.5kg/sqm

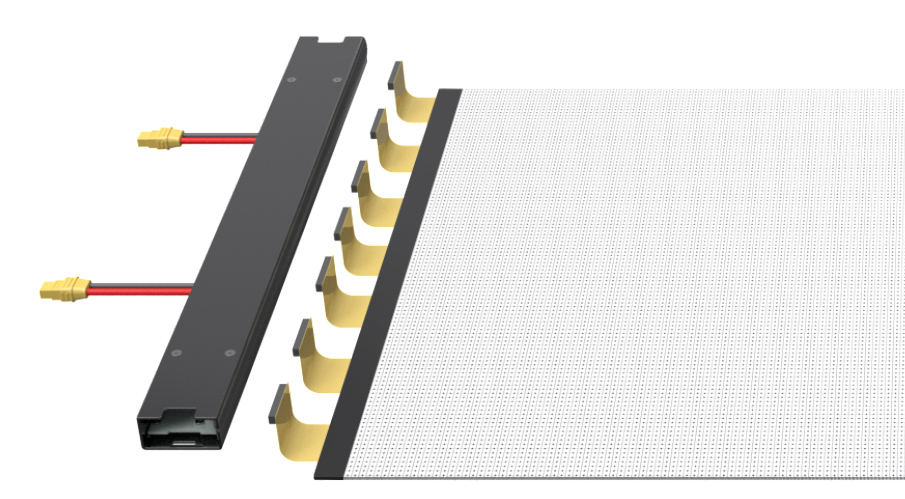

Detachable power supply increases reliability of device operation.

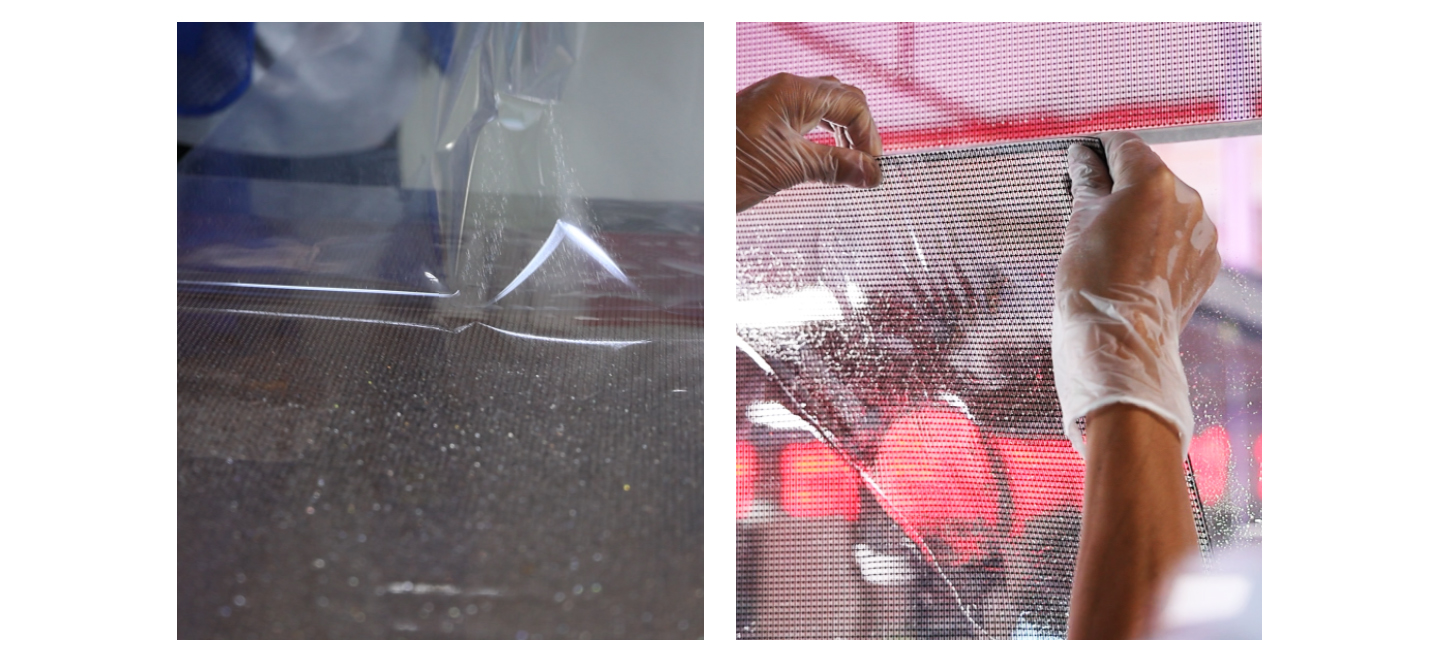

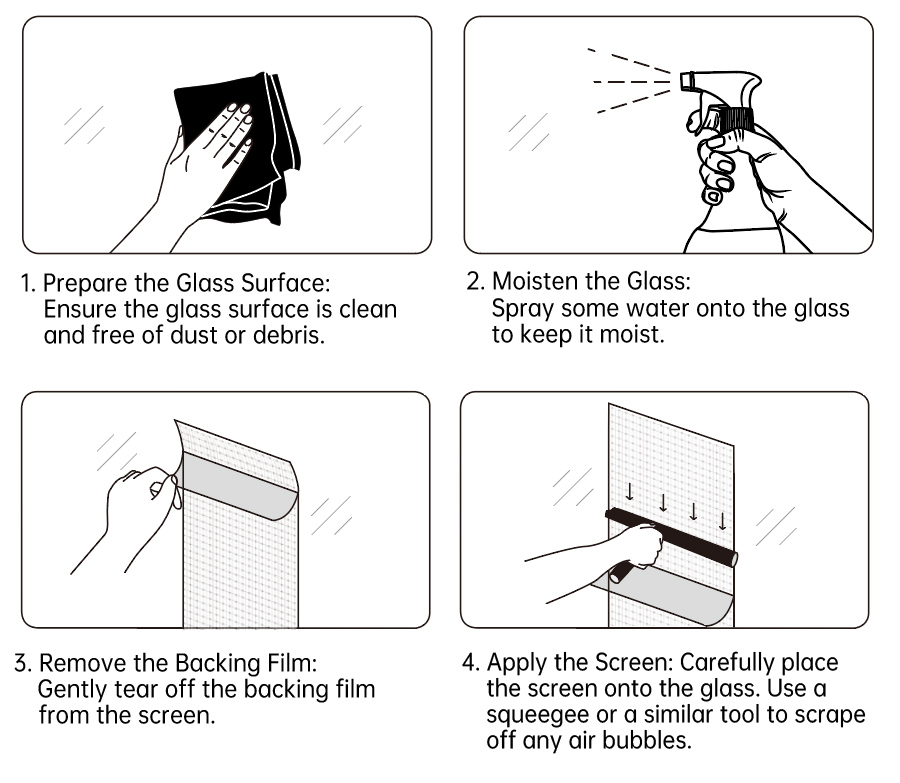

Tear off the film to stick NFL with strong adhesion which is resistant against low temperature, humidity and high temperature and falling apart falling out.

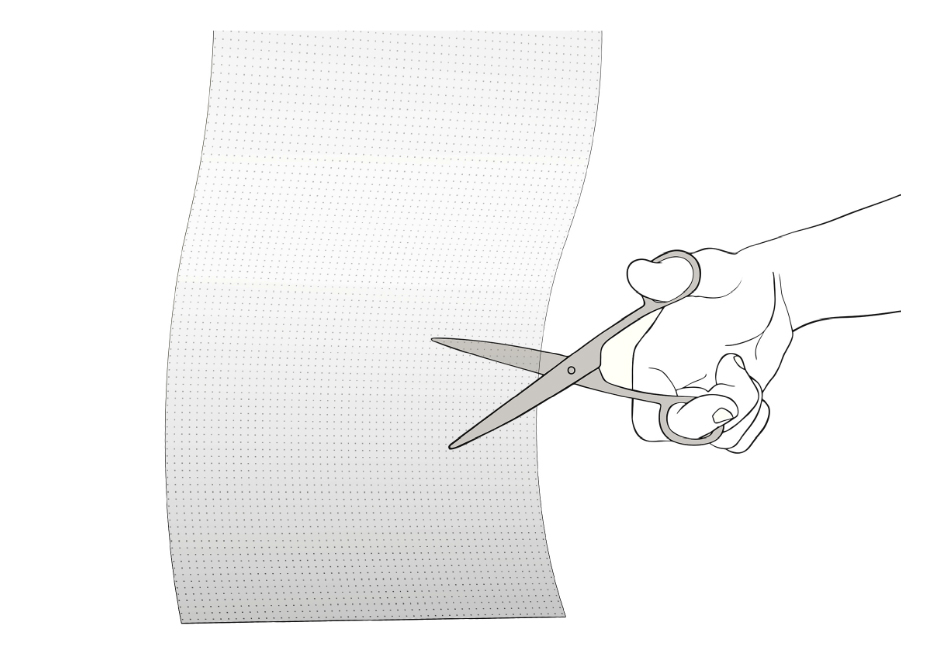

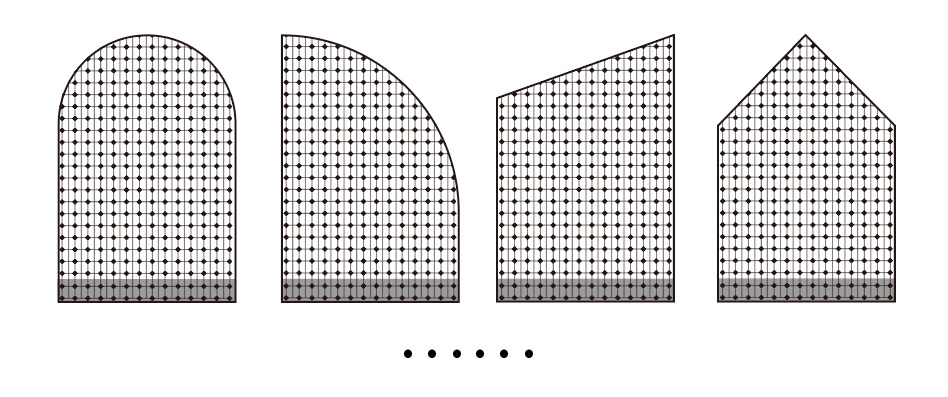

Different shapes is allowed with pixel reduction in one end to present more creative display possibilities.
Attention: Pixel reduction shall be done under the guidance of professionals.

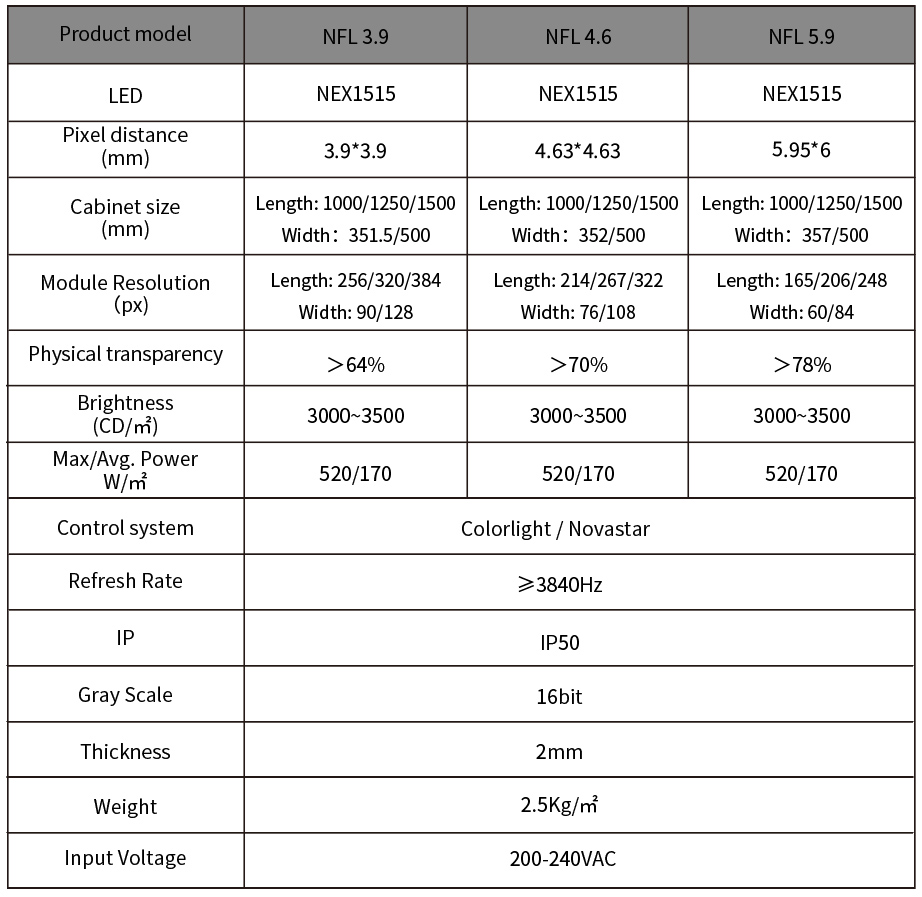

Specification
Remark: NEXNOVO continues to research and develop high quality transparent LED products. The standard parameters are for design reference only, thus for specific project parameters and customization requirements, please refer to our issued project solutions.
