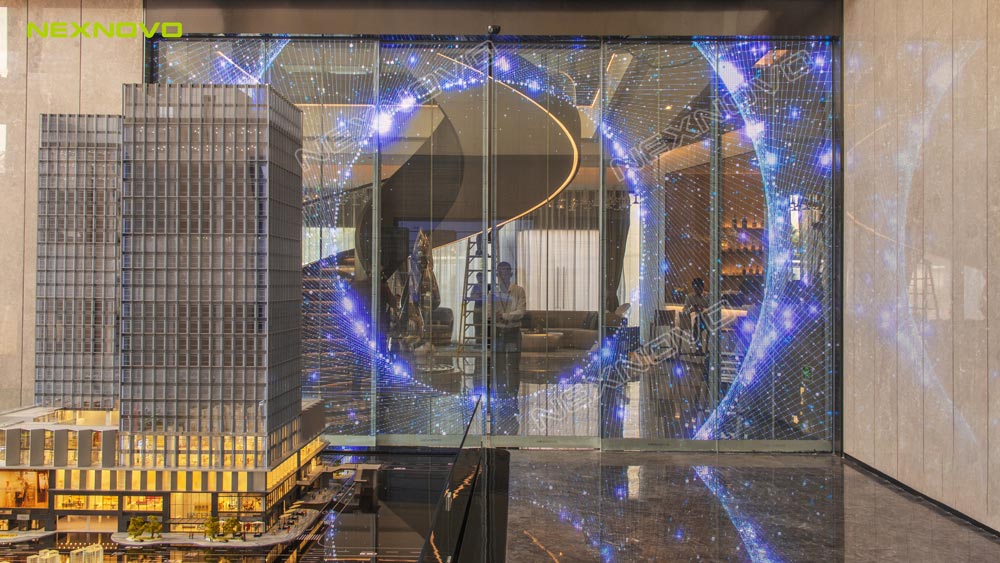

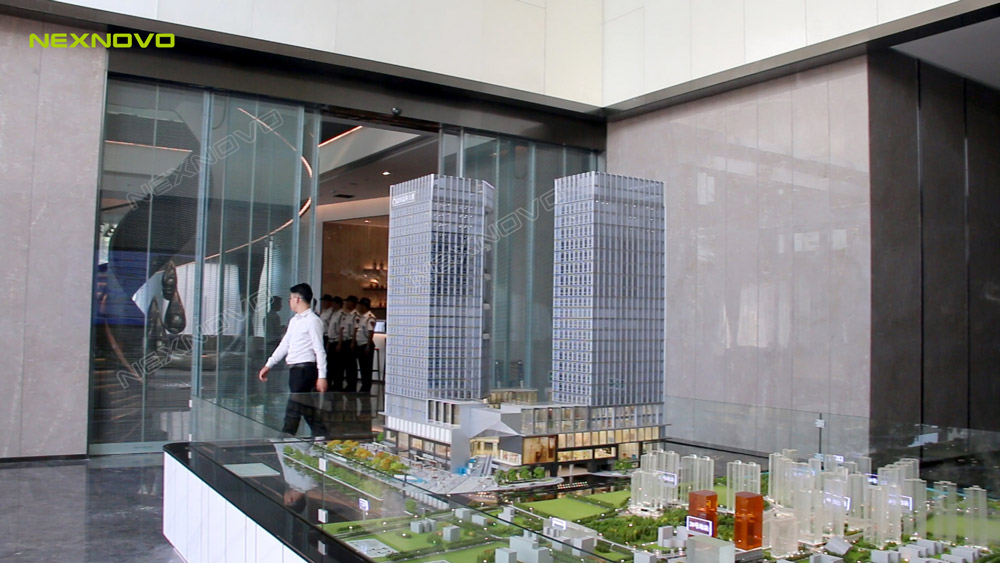

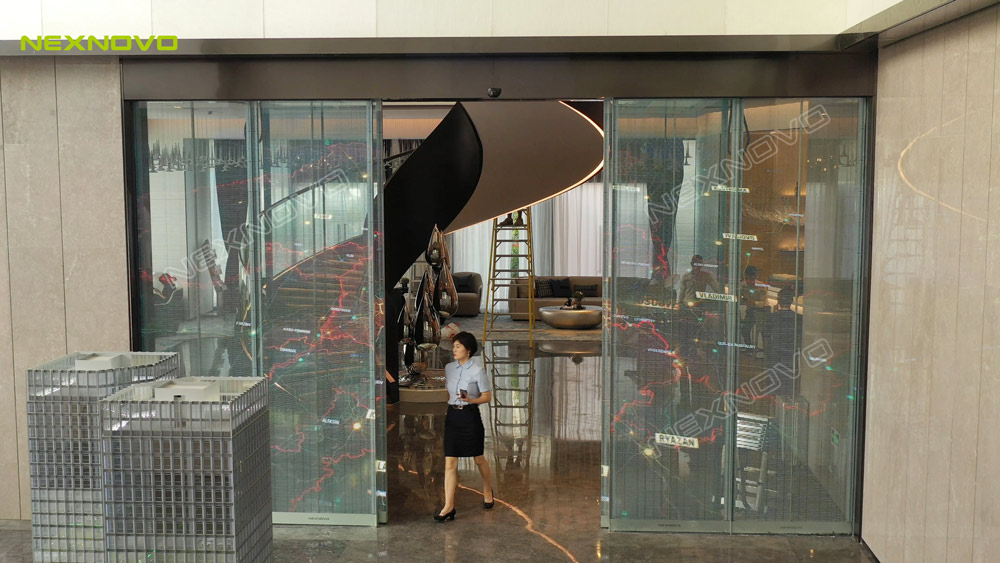

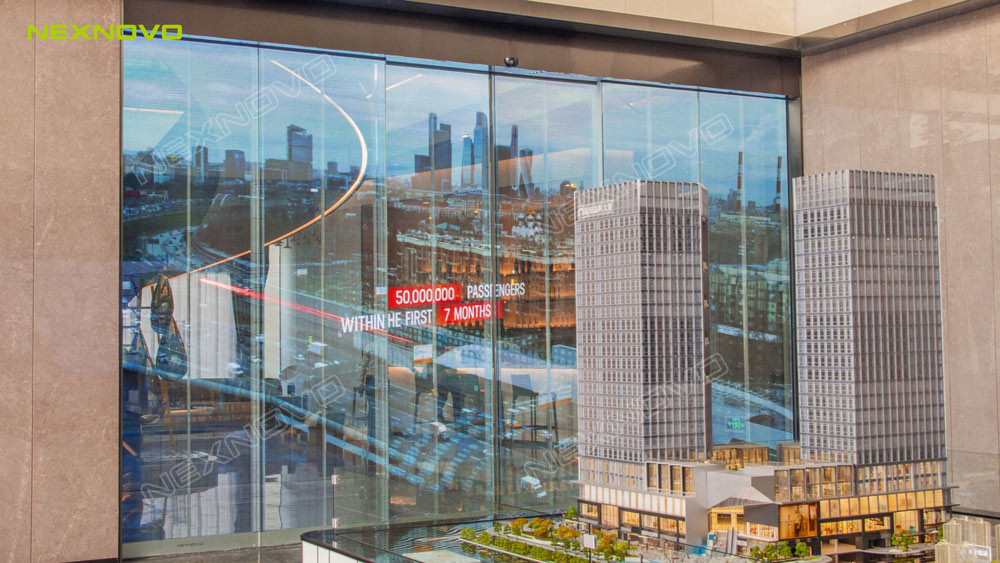

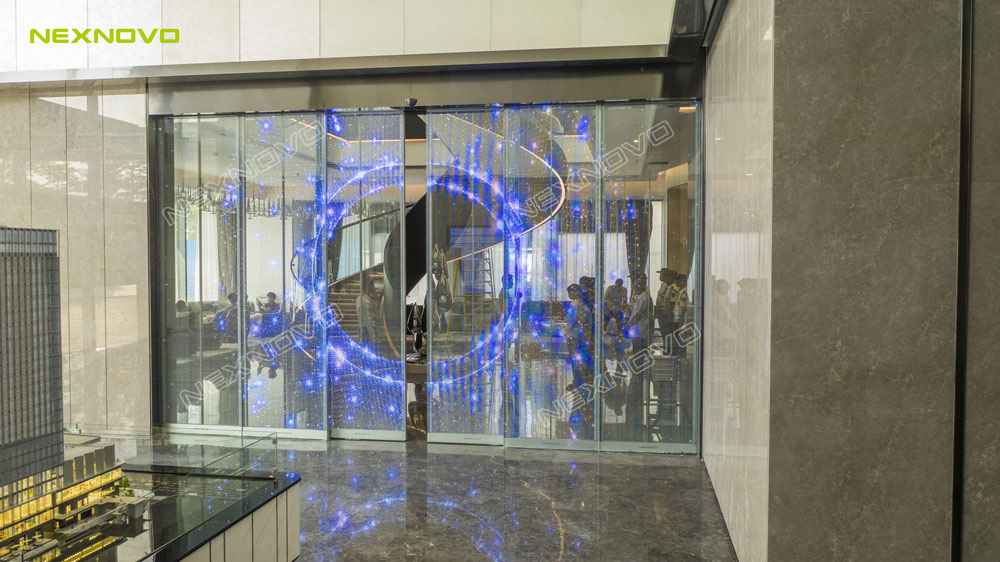

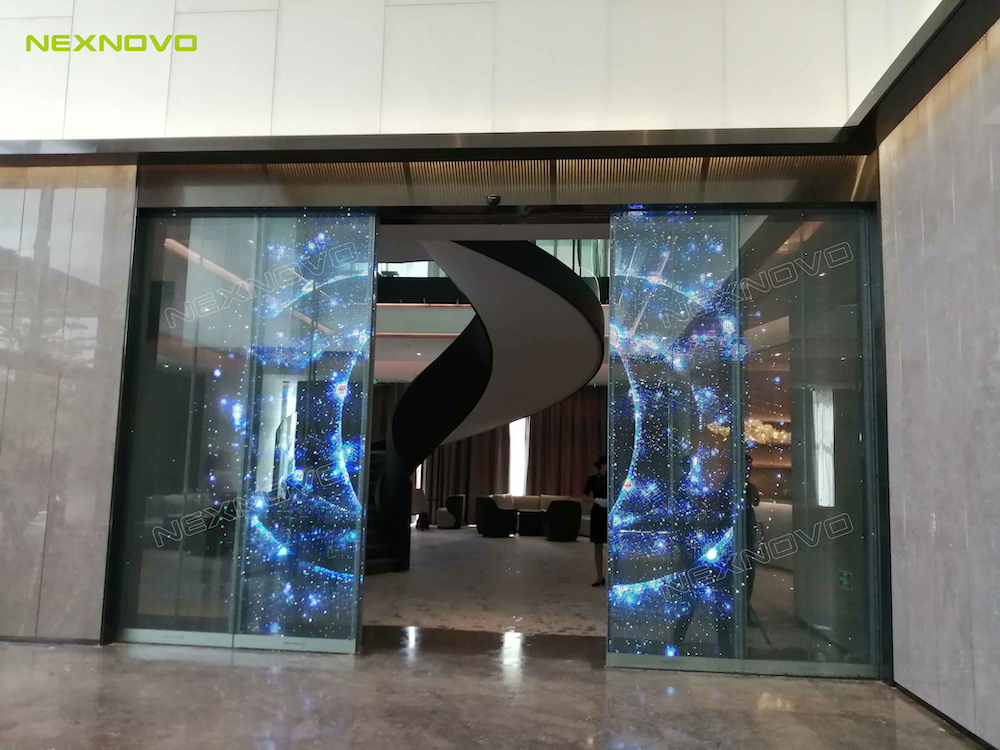

Perfect combination - The gate of technology center with high-tech transparent LED sliding door
Project location: Yitian technology center, Pingshan, Shenzhen
Model: NS3.9
Area: 21 sqm
Rollout time: 30days
Pixel Pitch: 3.91 * 7.82mm
Resolution: 256 * 448
Difficulty: Challenge
Challenge:
1. Since the height of the screen body is 3.7 meters, the screen can only be lifted out from the workshop by crane.
2. The upper baffle on the installation site has been pre-installed and cannot be removed. The installation space is only 3.6 meters height. Our engineer can only tilt the screen with a weight of 75 kg into the reserved mounting hole.
3. In the maintenance port with a length of 40*width 20, install the moving rail, connect the power cable and fix the screen, and repeat this six times.
