Diamond shaped glass LED displays--Jiangnan Joy City

Product model: NE series
Screen Size: 831sqm㎡
Project Location: China
Project Time: 2023

Diamond shaped glass LED displays--Jiangnan Joy City

Product model:NE SeriesScreen Size:831sqm

Project Location:ChinaProject Time:2023-05-19

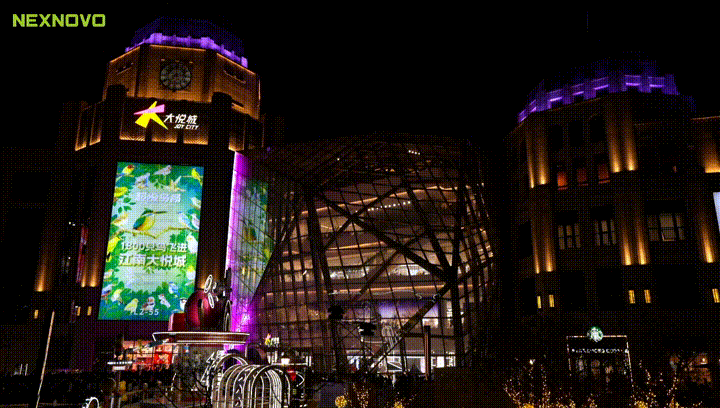

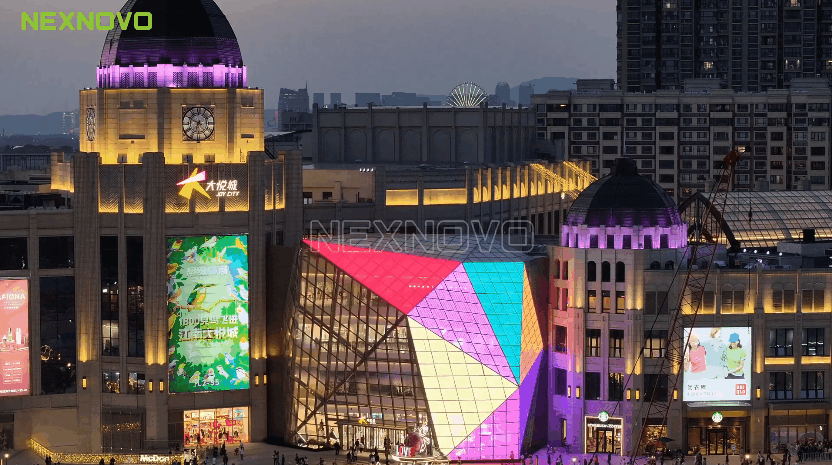

The photoelectric curtain wall with its magnificent large diamond surface is truly a sight to behold.

LED photoelectric glass-Jiangnan Joy City

glass LED displays--Jiangnan Joy City

curved video wall

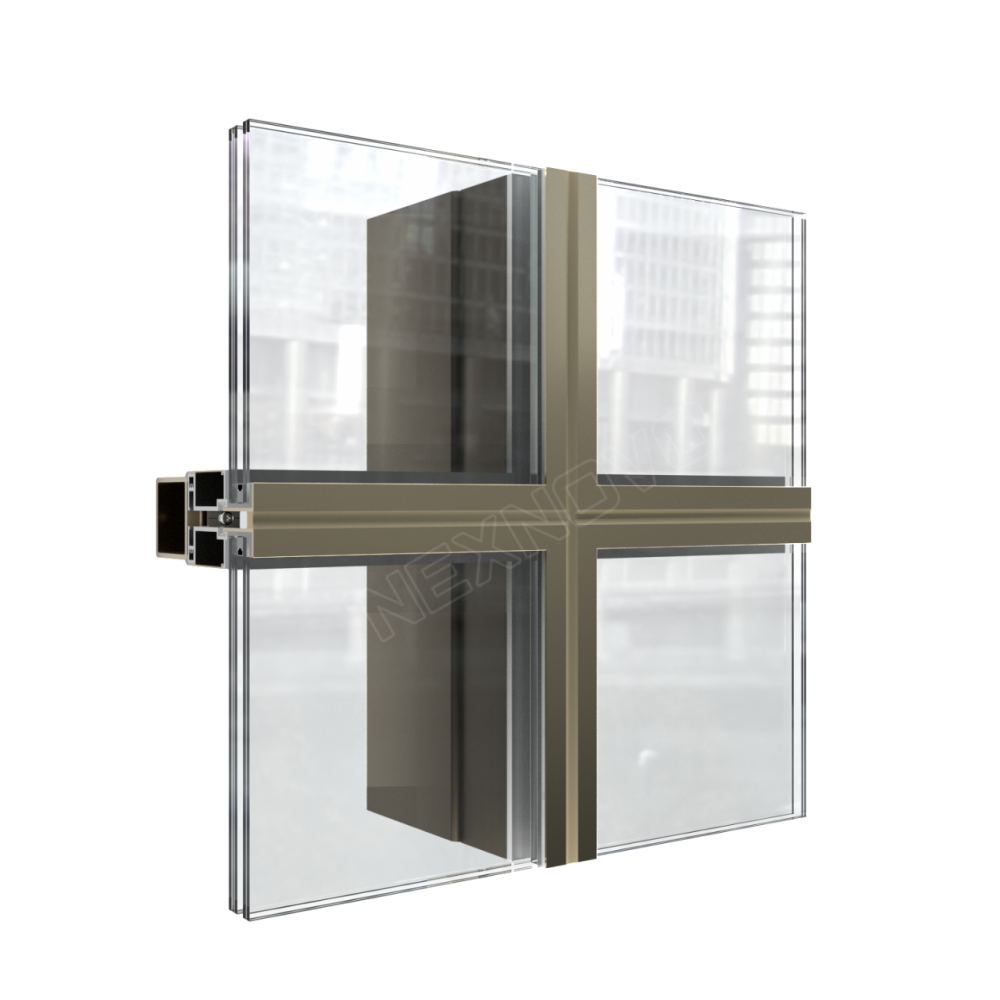

Its innovative structure-type full light frame ensures that it is not only beautiful but also highly functional. The rear side of the photoelectric glass is masterfully bonded to the aluminum alloy auxiliary frame, using a two-component silicone structural adhesive, resulting in an incredibly strong and durable hold.

NE Series LED photoelectric glass

LED photoelectric glass wall


On the outer side of the glass, a carefully crafted aluminum alloy press plate has been installed to maintain the panel's integrity. The press plate is meticulously connected to the glass, ensuring that it remains steadfast and secure. To further strengthen the photoelectric curtain wall, the glass periphery is fastened to the auxiliary steel structure at the rear side using the aluminum alloy press block. This expertly crafted block is designed to withstand even the harshest of conditions.


The M6 stainless steel mechanism screw used to secure the press block is a testament to the quality of materials and craftsmanship that have gone into the creation of this stunning structure. Each screw is placed at an interval of 300mm, ensuring that the photoelectric curtain wall is firmly anchored to its supporting structure.

Diamond shaped glass LED displays

What’s more,the level of customization in this diamond project is unparalleled.

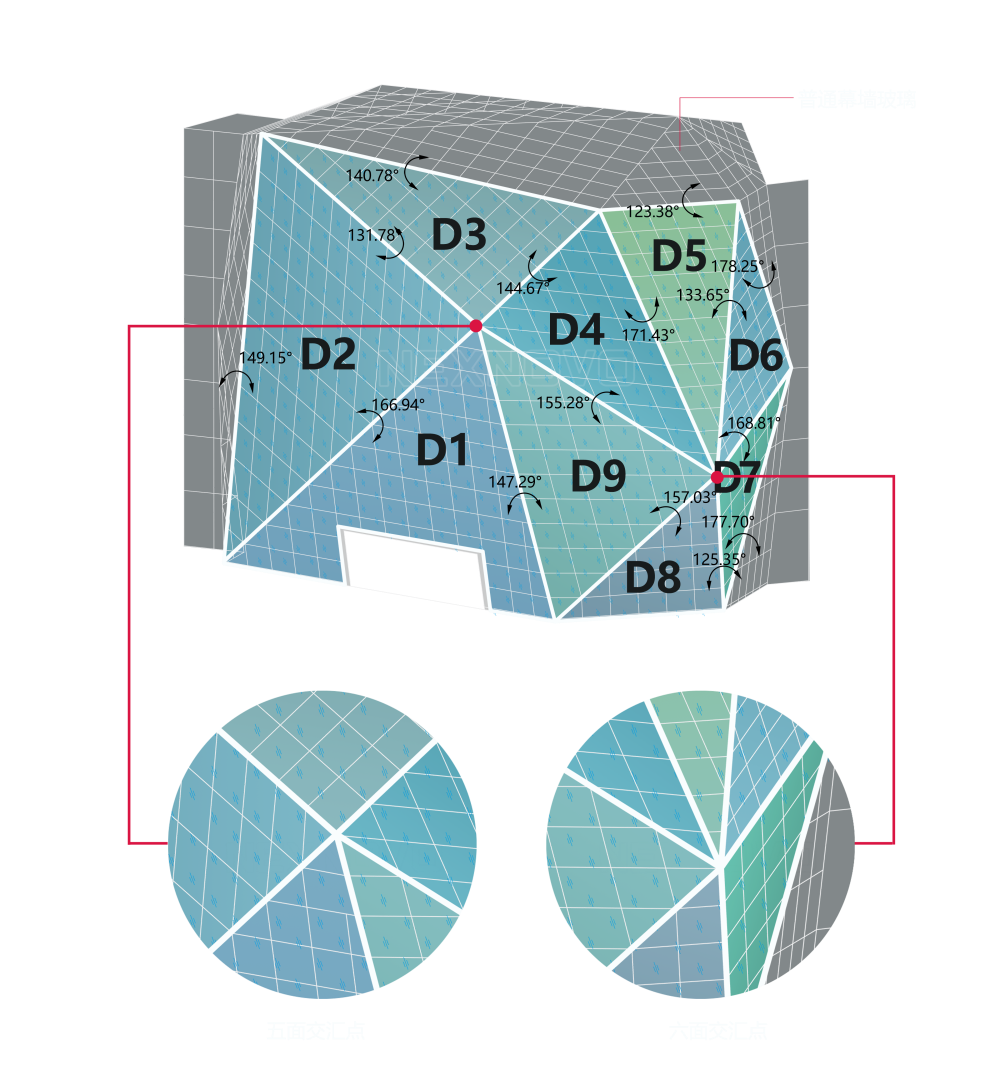

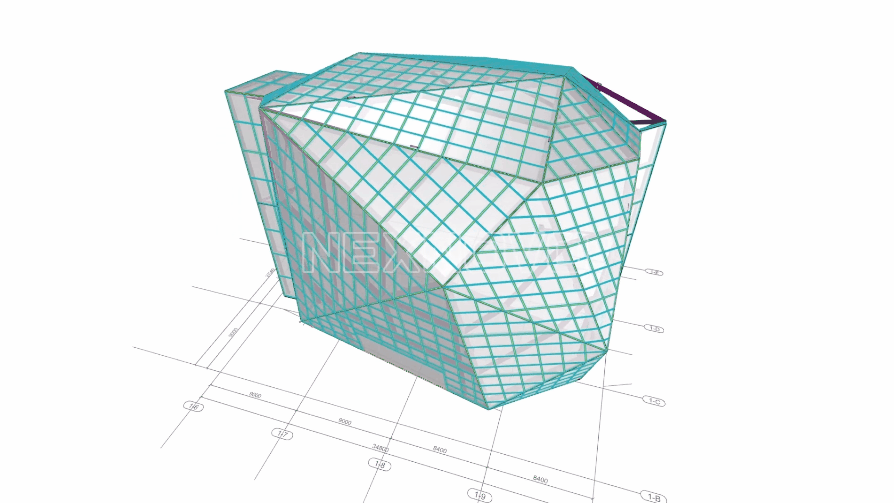

With 76 custom-made cabinets and 410 panels in 33 different sizes and shapes, including rectangles, parallelograms, right trapezoids, irregular trapezoids, right angles, and acute triangles, this project is a stunning display of creativity and precision.

LED photoelectric glass structure

glass LED displays

It boasts the largest number of special-shaped types of any photoelectric glass project to date, with each panel expertly crafted to fit its unique space. The result is a breathtaking masterpiece that showcases the possibilities of modern design and engineering.

Jiangnan Joy City glass led

Diamond shaped glass LED displays

Diamond shaped glass LED screen



Overall, the photoelectric curtain wall with large diamond surface is a true marvel of modern engineering and design. It is both aesthetically pleasing and highly functional, offering unparalleled strength and durability. Its superior construction, quality materials, and meticulous attention to detail ensure that it will continue to be a sight to behold for many years to come.

Diamond shaped glass LED displays--Jiangnan Joy City(图12)






Keywords: shaped glass LED displays
